Image similar

I 6817 EB

Trend A Class
Discover Configure Technical Data
Trend A Class / I 6817 EB
Discover Configure Technical Data

I 6617 EB


I 6817 EB


I 6877


I 7057 EB


I 7057 DBL


I 7057 EBL
Book an appointment
Configurator
Dealer
Your way to I 6817 EB
Trend A Class I 6817 EB
Price (incl. VAT) £91,490.00 a)
Standard chassis Fiat Ducato Light Low Platform
Standard engine 140 MultiJet 3
kW (bhp) 103 (140)
Emission standards Euro 6e
Overall length, approx. 699
Overall width, approx. 233
Overall height, approx. 300
Headroom in living area, approx. 205
Towable load braked/unbraked 2000 / 750
Wheelbase, approx. 3800
Bed dimension: Front bed, L x W, approx. 196 x 150
Bed dimension: Rear bed, L x W, approx. 207 x 80 / 194 x 80 / 211 x 192
Sleeping berths standard / max. 4
Mass in running order (+/-5%)* 2931 (2784 to 3078)*
Manufacturer-specified mass for optional equipment* 233
Technically permissible maximum laden mass* 3499
Permitted number of seats (including driver)* 4
Refrigerator volume (thereof freezer), approx. 137 (15)
Waste water tank, approx. 90
Fresh water tank capacity, total/ Fresh water tank capacity at driving filling 116 / 20
Measurement storage opening left (W x H) 85 x 65 (○) / 85 x 110
Measurement storage opening right (W x H) 85 x 65 (○) / 85 x 110
a) This is a recommended retail price based on German retail prices. Prices in other countries may differ due to currency conversion and country-specific VAT, fees and import duties. Please contact a local dealer for the latest prices in your country.

* The specified mass in running order is a default value defined in the type-approval procedure. Due to manufacturing tolerances, the actual weighed mass in running order may deviate from the value stated above. Deviations of up to ± 5 % of the mass in running order are legally permissible and possible. The permissible range in kilograms is given in brackets after the mass in running order. The manufacturer-specified mass for optional equipment is a calculated value for each type and layout that HYMER uses to determine the maximum weight available for factory-fitted optional equipment. The limitation of optional equipment is intended to ensure that the minimum pay-mass, i.e. the legally prescribed free mass for baggage and retrofitted accessories, is actually available for the vehicle delivered by HYMER. The real weight of your vehicle ex works can only be determined when it is weighed at the end of the line. If, in exceptional cases, the weighing shows that the actual load capacity falls below the minimum pay-mass despite limiting the optional equipment due to a permissible weight deviation, we will check together with your trade partner and you whether we should, for example, increase the load capacity of the vehicle, reduce the number of seats or remove optional equipment before delivering the vehicle. The technically permissible maximum laden mass of the vehicle and the technically permissible maximum mass on the axle must not be exceeded.

(○) Optional
Length
699 cm
Width
233 cm
Height
300 cm
Sleeping berths max.
4
Technically permissible maximum laden mass
3499 kg
Price
£91,490.00
A Class

Layout I 6817 EB

Full-length overhead lockers in the rear area

Spacious comfort bathroom with optically separated shower

Single beds high as standard incl. comfortable access steps

Exterior view

Image similar
70 cm wide habitation door with convenient coupe entrance

Exclusive rear design with top-entry rear wall, ShapeLine LED tail lights and 3rd brake light integrated into the rear spoiler

Large rear garage can be loaded on both sides, one-hand operation of the garage doors, lighting, 230 V socket and sturdy lashing rails

Lifetime Smart superstructure - with wood-free, GRP-clad underbody

Interior

Interior specification

1
  • The IsoProtect living area floor is completely free from steps or ledges – from the driver’s cab to the bathroom.
  • In some Low Profile layouts, the seating lounge can be converted into an additional bed if required (depending on the model).
  • The overhead lockers are extremely roomy. They also feature AirPlus rear ventilation that prevents a build-up of condensation when the temperature drops.
  • On request, the Isofix system can be installed for safe attachment of child seats. It is fitted as standard on the EBL and DBL models.
  • The heating is installed directly in the seating lounge, allowing the use of shorter pipes for perfect heating performance. The frost monitor valve is easily accessible via the kitchen cabinet.

Exterior specification

1
  • The large rear garages feature doors on the left and right with practical one-hand operation. Lighting, a 230 V socket and a total of three lashing rails are fitted as standard.
  • The 70 cm-wide comfort habitation door, coupé entrance and electric step make getting in and out of the vehicle a breeze.
  • Automotive rear with ShapeLine LED rear lights. The side corners of the rear light moulding can be individually replaced and are therefore inexpensive to repair.
  • The aerodynamic skylight set into the cab hood on the Low Profile models allows both light and air into the vehicle.
  • The roof, walls and underfloor are GRP-clad and thus optimally protected against damage.

Variety of choice

Saros
Wood décor Ashton

Dimensions

Image similar
1
2
3
4
5

I 6817 EB

1 Length 699 cm
2 Height 300 cm
3 Width 233 cm
4 Headroom 205 cm
5 Wheelbase 3800 mm

Motor

140 MultiJet 3

Fuel Diesel

6-gear

CCM
2184
Power
140 hp

Weight

Technically permissible maximum laden mass
3499 kg
Mass in running order
2931 kg
Manufacturer-specified mass for optional equipment
233 kg
Towable load braked
2000 kg
Towable load unbraked
750 kg
Electrical installation
Standard equipment
Awning light 12 V
Number of sockets 1x 12V, 7x 230V, 4x USB
LED lighting throughout the vehicle
Pre-wiring for solar
Electric block with integrated overvoltage protection and separate ground fault circuit breaker
Light Moments: Indirect ambient lighting above the overhead lockers
Light Moments: Indirect wall surface ambient lighting
Light Moments: illuminated kitchen splashback
Light Moments: Clad seat chest side with indirect lighting
Light Moments: Entrance segment with indirect lighting
Light Moments: Indirect lighting in the bathroom with illuminated shower panel
Leisure battery AGM, 95 Ah
Spotlights in the roof lining above the habitation door
Functional lighting (surface-mounted and recessed spotlights)
Automatic switch-on/disconnect for starter battery, leisure battery and refrigerator
On-board control panel
Optional equipment
Second leisure battery AGM, 95 Ah
Solar power system 100 watt
2nd Leisure battery Dual Battery System (Lithium), 140 Ah
Heating
Standard equipment
Heating in the seating unit for optimum heat distribution, built-in
Gas hot air heating 6kW with 1.8kW electric heating element and hot water boiler incl. digital control panel
Optional equipment
Hot-water floor heating
Floor heating electric (partial)
Hot-water heating with boiler, automatic drain valve and shut-off valve for the sleeping area and digital control panel
Hot-water carpet for the driver's cab
Heat exchanger for hot-water heating
Water supply
Standard equipment
Fresh water tank in insulated and heated area
Insulated waste water tank
Submersible pump
Optional equipment
Outdoor shower (cold water)
Switch for water pump
Gas supply
Standard equipment
Storage space for 2 gas bottles with a filling weight of 11 kg each, with simplified access
Optional equipment
Outdoor gas socket gas pressure 30 mbar
Automatic gas cylinder switchover incl. crash sensor, EisEx and gas filter

Downloads

Weitere Fahrzeuge der Baureihe Trend

  • Body type
  • Sleeping berths
  • Bed types
  • Length
  • Number of seats
Result00
Filter

Trend A Class
I 6617 EB

£90,990.00a)

Technically permissibile maximum laden mass*
3499 kg
Sleeping berths max.
4
Height
300
Length
670

Trend A Class

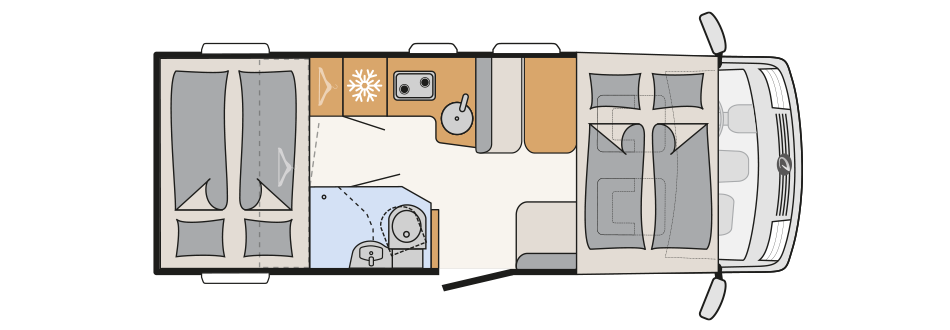

I 6877

£91,490.00a)

Technically permissibile maximum laden mass*
3499 kg
Sleeping berths max.
5
Height
300
Length
699

Trend A Class

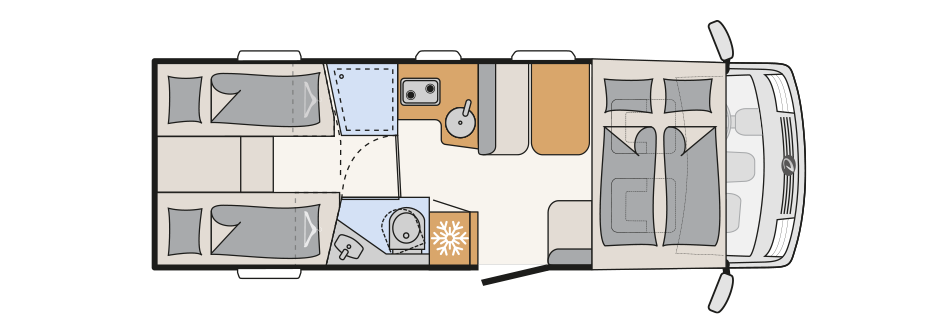

I 7057 EB

£94,090.00a)

Technically permissibile maximum laden mass*
3499 kg
Sleeping berths max.
5
Height
300
Length
740

Trend A Class

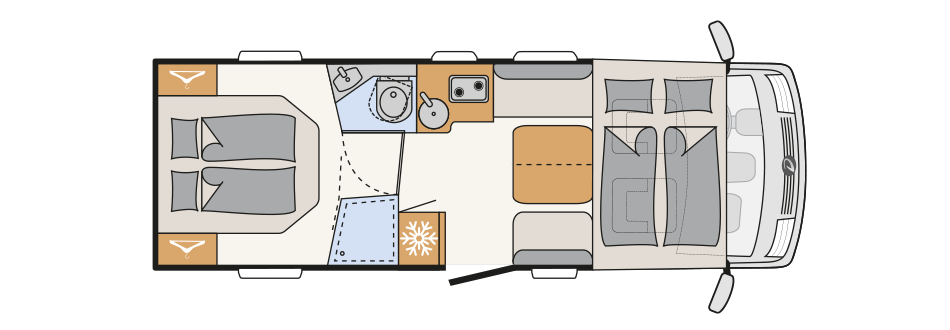

I 7057 DBL

£96,090.00a)

Technically permissibile maximum laden mass*
3499 kg
Sleeping berths max.
4
Height
300
Length
740

Trend A Class

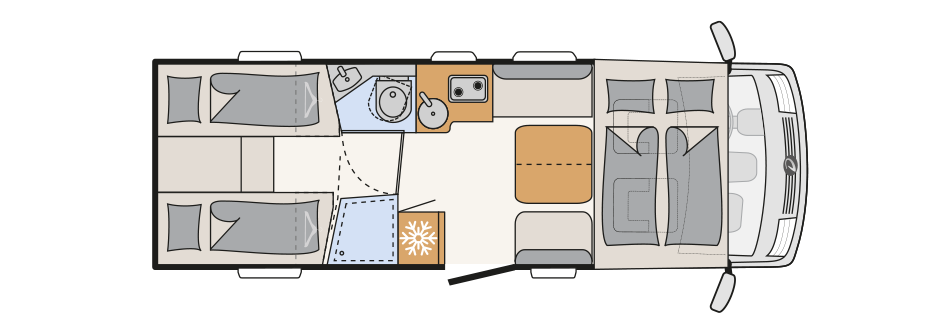

I 7057 EBL

£96,090.00a)

Technically permissibile maximum laden mass*
3499 kg
Sleeping berths max.
4
Height
300
Length
740

Trend Low Profile
T 6617 EB

£80,890.00a)

Technically permissibile maximum laden mass*
3499 kg
Sleeping berths max.
4
Height
300
Length
671

Trend Low Profile
T 6817 EB

£81,490.00a)

Technically permissibile maximum laden mass*
3499 kg
Sleeping berths max.
5
Height
300
Length
699

Trend Low Profile
T 6877

£81,490.00a)

Technically permissibile maximum laden mass*
3499 kg
Sleeping berths max.
5
Height
300
Length
699

Trend Low Profile
T 7057 EB

£83,490.00a)

Technically permissibile maximum laden mass*
3499 kg
Sleeping berths max.
5
Height
300
Length
741

Trend Low Profile
T 7057 DBL

£85,490.00a)

Technically permissibile maximum laden mass*
3499 kg
Sleeping berths max.
5
Height
300
Length
741

Trend Low Profile
T 7057 EBL

£85,490.00a)

Technically permissibile maximum laden mass*
3499 kg
Sleeping berths max.
5
Height
300
Length
741

a) All prices are recommended retail prices in GBP including legal applicable VAT, On The Road Charges (OTR including delivery from Germany, registration and PDI). Possible import duties are not included and will be charged separately. Your local dealer informes you about the applicable prices, taxes and duties for your country.

*The technically permissible total mass is a value specified by the manufacturer, which the vehicle must not exceed, even when loaded. It therefore has an influence on the permissible number of seats, options for selecting special equipment and remaining payload options.
Detailed information on weights and vehicle configuration can be found in our technical data, legal information section and in the configurator.
